Reference: UP5000 Pylon 48v
Brand: Pylontech
Pylon Lithium UP5000 4.8kWh Li-Ion Solar Battery 48V Nominal Energy: 4800watts (4.8 kw) Voltage: 48 V Depth of Discharge : 95% Battery Type : Lithium Ion
Reference: CAB-PK-PYLON
Brand: Pylontech
Pylon battery cable pack for US2000B , US3000 , UP2500
Rated Power: 8000W / 8kW
Maximum Apparent Power: 8.8kVA
Parallel Capability: Yes, up to 48kW in parallel
Dual MPPT Solar Charge Controller
Supports Lithium-ion & Lead-acid Batteries
WiFi & Bluetooth Monitoring Supported
200% Surge Power Capability (10 seconds)
Maximum PV Array Power: 12,800W
Maximum PV Input Voltage: 600VDC
IP66 Weather Protection Rating
Delivery policy
Return policy
Dual MPPT trackers with up to 3 string inputs
Supports single-phase and three-phase flexible connections
Generator compatible with automatic generator control
Supports solar + utility joint operation
Configurable charge and discharge schedules
Peak shaving support in self-use and generator mode
Natural convection cooling system
Fast UPS switching time under 4ms
Solar Input:
Maximum PV Array Power: 12,800W
MPPT Operating Voltage Range: 90VDC – 520VDC
Maximum PV Open Circuit Voltage: 600VDC
Startup Voltage: 90VDC
Maximum Input Current: 32A / 32A
Maximum Short Circuit Current: 36A / 30A
Number of MPPT Trackers: 2
Maximum Input Strings: 3
Battery:
Battery Voltage Range: 40VDC – 60VDC
Maximum Charge / Discharge Power: 8000W
Maximum Charge / Discharge Current: 190A
Battery Communication: CAN / RS485
AC Input:
Input Voltage Range: 187V – 253VAC
Maximum AC Input Current: 50A
Frequency Range: 45Hz – 55Hz / 55Hz – 65Hz
AC Output:
Rated Output Power: 8000W
Maximum Apparent Output Power: 8.8kVA
Rated Grid Voltage: 220V / 230VAC
Rated Frequency: 50Hz / 60Hz
Maximum Output Current: 40A
Waveform: Pure Sine Wave
Power Factor: >0.99
Backup Output:
Rated Backup Power: 8000W
Surge Backup Power: 2 × rated power for 10 seconds
UPS Switching Time: <4ms
Maximum AC Pass-through Current: 50A
Efficiency:
Maximum Efficiency: >97.5%
EU Efficiency: >96.2%
Physical:
Dimensions (W × H × D): 406 × 560 × 205 mm
Net Weight: 24kg
Cooling Method: Natural Convection
Protection Rating: IP66
No customer reviews for the moment.
Reference: 8kw Deye Hybrid 48V
Brand: Deye
Deye 8kW Hybrid PV Inverter 48V Model SUN-8K-SG05LP1 -EU-SM2 Rated Power : 8000w Max Solar Input :12800w No of MPPT : 2 MPPT Voltage : 150 -425w Startup Voltage : 125V Effeciency : 97.6%
Reference: 15kw Deye 3 phase
Brand: Freshtec Energy
Rated Power: 15,000 WMin MPPT Voltage: 160 VMax Input Voltage: 1,000 VVDC Startup Voltage: 160 VMax DC Power: 32,000 WDC Current: 36 A + 36 AMax DC Inputs: 4 (2 strings per MPPT)Weight: 51.9 kgMPPT Quantity: 2Warranty: 5 Years
Reference: 12kw Sunsynk single phase
Brand: Freshtec Energy
12kw Sunsynk single phase Rated Power:12,000 W Min PPT Voltage:160V Max Input Voltage:500 VDC Startup Voltage:160 Max DC Power:15,600 W DC Current:37.5 A Max DC Inputs:3 Weight:44 kg MPPT Quantity :2 Warranty:5
Reference: 6kw Deye Hybrid 48V
Brand: Deye
Deye 6kW Hybrid PV Inverter 48V Model SUN-6K-SG05LP1-EU-SM2 Rated Power : 6000w Max Solar Input : 9600w No of MPPT : 2 MPPT Voltage : 150 -425w Startup Voltage : 125V Effeciency : 97.6%

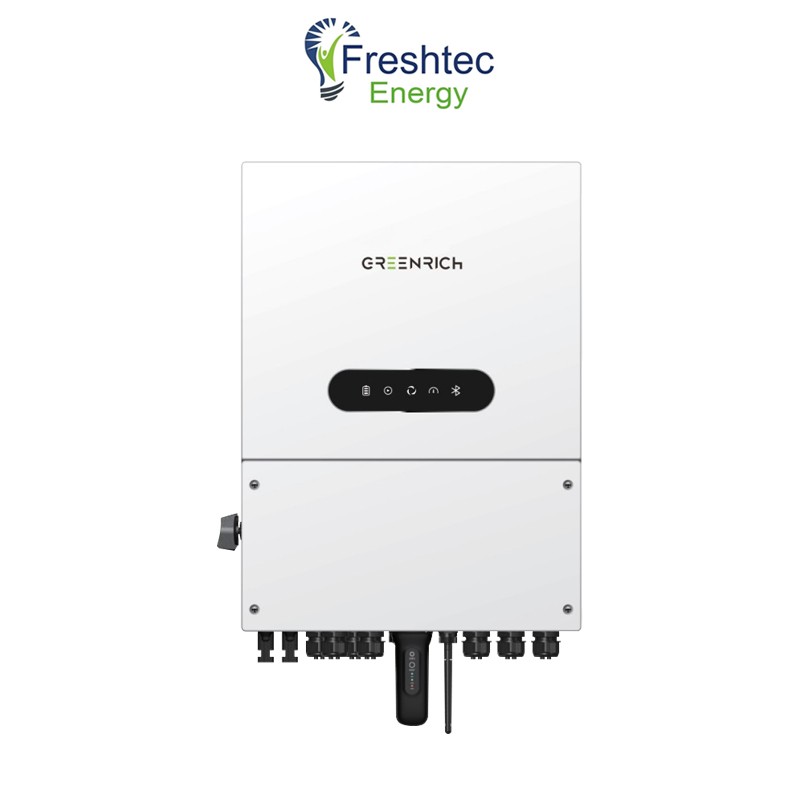

Reference: Greenrich 6kW Hybrid Inverter
Brand: Freshtec Energy
Rated Power: 6000W / 6kWMaximum Apparent Power: 6.6kVAParallel Capability: Yes, up to 36kW in parallelDual MPPT Solar Charge ControllerSupports Lithium-ion & Lead-acid BatteriesWiFi & Bluetooth Monitoring Supported200% Surge Power Capability (10 seconds)Maximum PV Array Power: 9600WMaximum PV Input Voltage: 600VDCIP66 Weather Protection Rating
Reference: 10kw Deye single phase
Brand: Deye
10 kw Deye single phase Rated Power:10,000 W Min PPT Voltage:160V Max Input Voltage:500 VDC Startup Voltage:160 Max DC Power:16000 W DC Current:37.5 A Max DC Inputs:3 Weight:44 kg MPPT Quantity :2 Warranty:5
Reference: 40kW Deye 3 phase hybrid inverter
Brand: Freshtec Energy
Rated Power: 40,000 WMin MPPT Voltage: 150 VMax Input Voltage: 1,000 VVDC Startup Voltage: 180 VMax DC Power: 52,000 WDC Current: 36 A + 36 A + 36 A + 36 AMax DC Inputs: 8 (2 strings per MPPT)Weight: 75 kgMPPT Quantity: 4Warranty: 5 Years
Reference: 16kw Deye 48v
Deye 16kW Hybrid PV Inverter 48V Single Phase Rated Power : 16000w Max Solar Input : 18 000w No of MPPT : 3 Max Input Voltage : 450w Startup Voltage : 150V Effeciency : 97.6%
Reference: 12kw Deye single phase
Brand: Freshtec Energy
12kw Deye single phase Rated Power:12,000 W Min PPT Voltage:160V Max Input Voltage:500 VDC Startup Voltage:160 Max DC Power:15,600 W DC Current:37.5 A Max DC Inputs:3 Weight:44 kg MPPT Quantity :2 Warranty:5
Reference: 12kw Deye 3 phase
Brand: Freshtec Energy
Rated Power:12,000 W Min PPT Voltage:160V Max Input Voltage:1,000 VDC Startup Voltage:160 Max DC Power:15,600 W DC Current:37.5 A Max DC Inputs:3 Weight:44 kg MPPT Quantity :2 Warranty:5
Reference: 5kw Deye Hybrid 48V
Brand: Deye
Deye Sun 5kW Hybrid PV Inverter 48V ( New Model) Rated Power : 5000w Max Solar Input :8000w No of MPPT : 2 MPPT Voltage : 125 -425w Startup Voltage : 150V Effeciency : 97.6%
Reference: 20kw Deye 3 phase
Brand: Freshtec Energy
Rated Power: 20,000 WMin MPPT Voltage: 160 VMax Input Voltage: 1,000 VVDC Startup Voltage: 160 VMax DC Power: 40,000 WDC Current: 36 A + 36 A (per MPPT)Max DC Inputs: 4 (2 strings per MPPT)Weight: 55 kgMPPT Quantity: 2Warranty: 5 Years
Rated Power: 8000W / 8kW
Maximum Apparent Power: 8.8kVA
Parallel Capability: Yes, up to 48kW in parallel
Dual MPPT Solar Charge Controller
Supports Lithium-ion & Lead-acid Batteries
WiFi & Bluetooth Monitoring Supported
200% Surge Power Capability (10 seconds)
Maximum PV Array Power: 12,800W
Maximum PV Input Voltage: 600VDC
IP66 Weather Protection Rating
