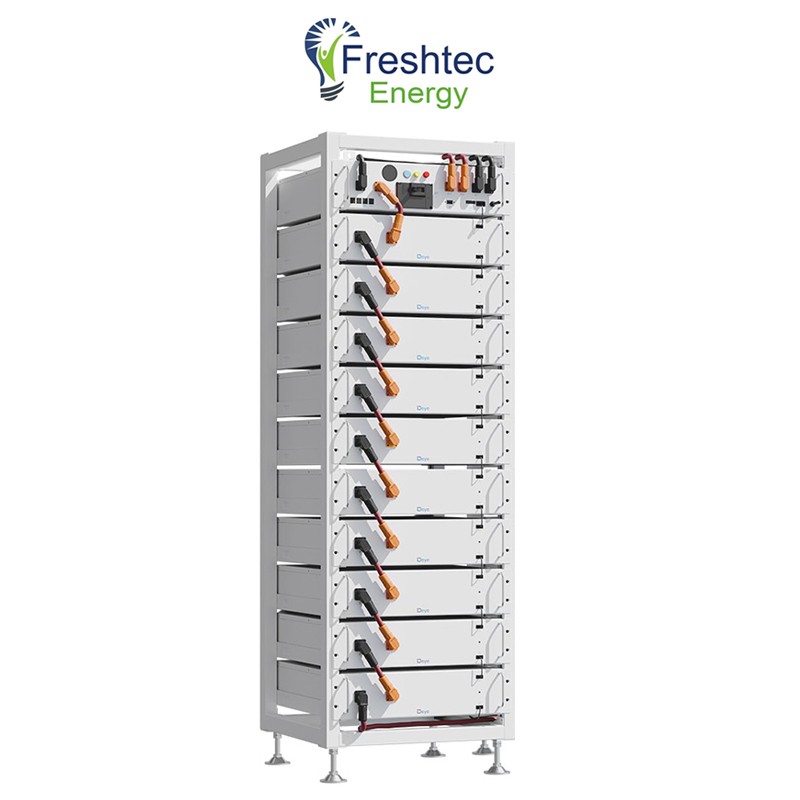

    Deye 76.8kW BOS-A HV Battery kit

    Deye 76.8kW BOS-A HV Battery kit
    Rating
    Rated Energy: 76,800 Wh (76.8 kWh)
    Battery Chemistry: LiFePO₄ (LFP)
    Nominal Voltage: 384 V
    Operating Voltage Range: ~336 – 438 V
    Capacity: 200 Ah
    Recommended Charge / Discharge Current: 100 A
    Max Charge / Discharge Current: 160 A
    Battery Modules: 10 × BOS-A modules
    Module Energy: 7.68 kWh per module
    Weight: ~800 kg (complete rack system)
    Installation: Rack-mounted system
    Communication: CAN2.0
    Recommended Depth of Discharge: 90%
    Cycle Life: ≥6000 cycles
    Warranty: 10 Years
    ZK299,500.00
    Tax included
    Quantity
    Product available for orders



    Delivery policy



    Return policy

    Description

    Extra useful specs

    • Battery Module Voltage: 38.4 V per module
    • Module Capacity: 200 Ah
    • Module Weight: ~70 kg each
    • Operating Temperature:
      Charge: 0 – 55 °C
      Discharge: −20 – 55 °C
    • Protection Rating: IP20
    • Humidity Range: 5 – 85% RH
    Product Details
    Deye 76.8kW BOS-A HV Battery kit

    Data sheet

    Weight
    800kg
    Reviews

    No customer reviews for the moment.

    Write your review

    Deye 76.8kW BOS-A HV Battery kit

    Deye 76.8kW BOS-A HV Battery kit

    Rated Energy: 76,800 Wh (76.8 kWh)
    Battery Chemistry: LiFePO₄ (LFP)
    Nominal Voltage: 384 V
    Operating Voltage Range: ~336 – 438 V
    Capacity: 200 Ah
    Recommended Charge / Discharge Current: 100 A
    Max Charge / Discharge Current: 160 A
    Battery Modules: 10 × BOS-A modules
    Module Energy: 7.68 kWh per module
    Weight: ~800 kg (complete rack system)
    Installation: Rack-mounted system
    Communication: CAN2.0
    Recommended Depth of Discharge: 90%
    Cycle Life: ≥6000 cycles
    Warranty: 10 Years
